Friulinox

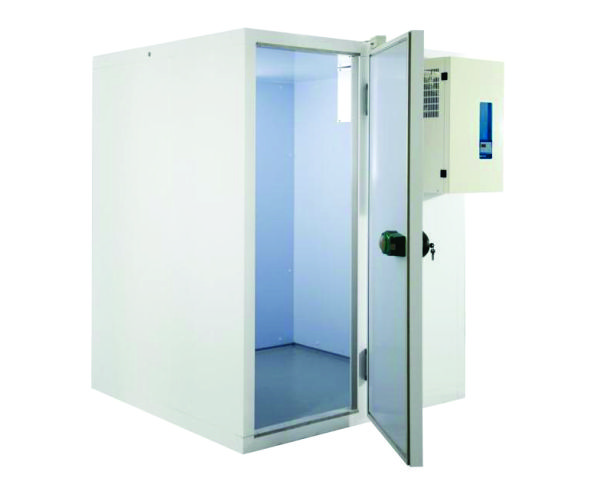

MINI COLD ROOMS GENERAL FEATURES The mini cold rooms are manufactured with closed-cell polyurethane foam panels with a density of 42 kg/m³, covered by white galvanised non-toxic plastic-coated sheet The panels assembly is of camlock type with metal “eccentric” hook Wall thickness is 70 mm, 60 mm for floor and 80 mm for ceiling The exterior height is 2060 mm, the internal height is 1920 mm Interior floor covering is: - standard, in grey slip-proof galvanised plastic coated sheet - optional (with additional price), in AISI 304 18/10 rusticated stainless steel R12 Interior ceiling covering is in white galvanised plastic-coated sheet Exterior floor and ceiling covering is in galvanised sheet with plastic-zinc sheet perimeter moulding All the mini cold rooms have floors with rounded interior corners and meet with strictest public-health standards They are directly moulded in the sheet, without any visible seams The door is hinged on the right with safety handle for opening from inside the cold room and the handle is complete with keylock For left hinged doors there is no added cost but need to be specified at order The doors are equipped with an anti-condensate heated resistance on the door moulding STANDARD PACKAGE The cold room package is composed of the cold room and the monoblocks which can be straddled or ceiling ones Both types can be either in the TN (-2/+8 °C) or BT (-20/-15 °C) versions The monoblocks are provided with a digital thermostat with visual and audible alarms automatically activated in case of need The cold rooms are also equipped with internal light and a door microswitch which stops the fans and turns on the light at door opening It is possible to order the cold room without holes, if needed The mini cold rooms with TN temperatures are in ‘T’ class (43 °C) The mini cold rooms with BT temperatures are in ‘ST’ class (38 °C) Shelving is optional and it is made in ALUPLAST a light-grey AL-polyetylene composed of 4 grids schelves with a bearing capacity of 150 kg each
