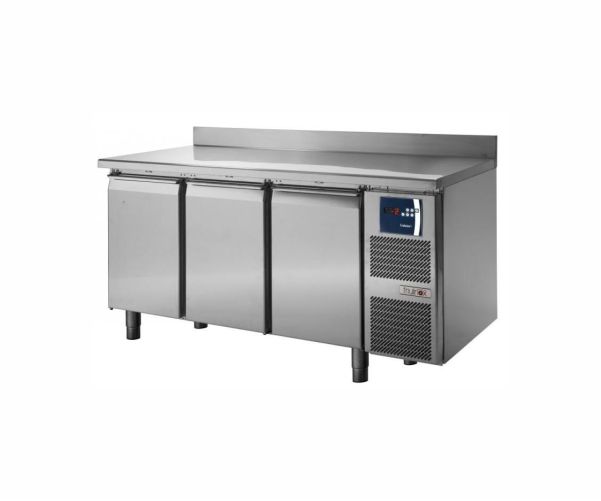

GENERAL CHARACTERISTICS Outer walls, backrest, doors and worktop made of AISI 304 18/10 chrome-nickel stainless steel with an external SCOTCH-BRITE satin finish External base panel in AISI 304 steel
AISI 304 18/10 stainless steel bevelled internal coating
Internal leakproof floor
High-density polyurethane foam insulation (approx. 42 kg/
m³) with a 50 mm thickness, using water-based ecological blowing agents to reduce ecological impact to ZERO
The counter is sized to work in class 5 (+40 °C), even when installed on a plinth installation (TN versions) This patented refrigeration system based on air ducts creates
the ideal conditions for improved temperature consistency and greater refrigeration cell load capacity, since the
cell is not equipped with evaporators Copper evaporator coil with aluminium fins protected against corrosion
with non-toxic paint finish Painted steel condenser coil with high thermal efficiency
Anti-condensate
resistance located on the casing bottomed out on the magnetic gasket Self-closing door with block in open position at 100° Ergonomic full-width door or drawer handle and magnetic
gasket on all 4 sides of the door or drawer
Stainless steel feet Ø 2” with adjustable H 150÷200 mm
NTERNAL SET-UP
7-position uprights 1 pair of guides with 1 grid for door compartment
REFRIGERANT UNIT
High-ventilation evaporator to ensure the highest efficiency of the cooling system
Compressor and condenser installed on a removable base for easy maintenance and replacements Refrigerant R134a for TN units and R404A for BT units Automatic defrosting via electric heating element
Defrost water evaporation system with superheated gas
For versions without cooling unit, defrost water evaporation by means of thermostatic resistor
VERSIONS / ACCESSORIES (OPTIONALS)
With worktop
With worktop and upstand Without worktop
Remote cooling unit
Water-cooled unit Set of castors Door/drawer lock with key
